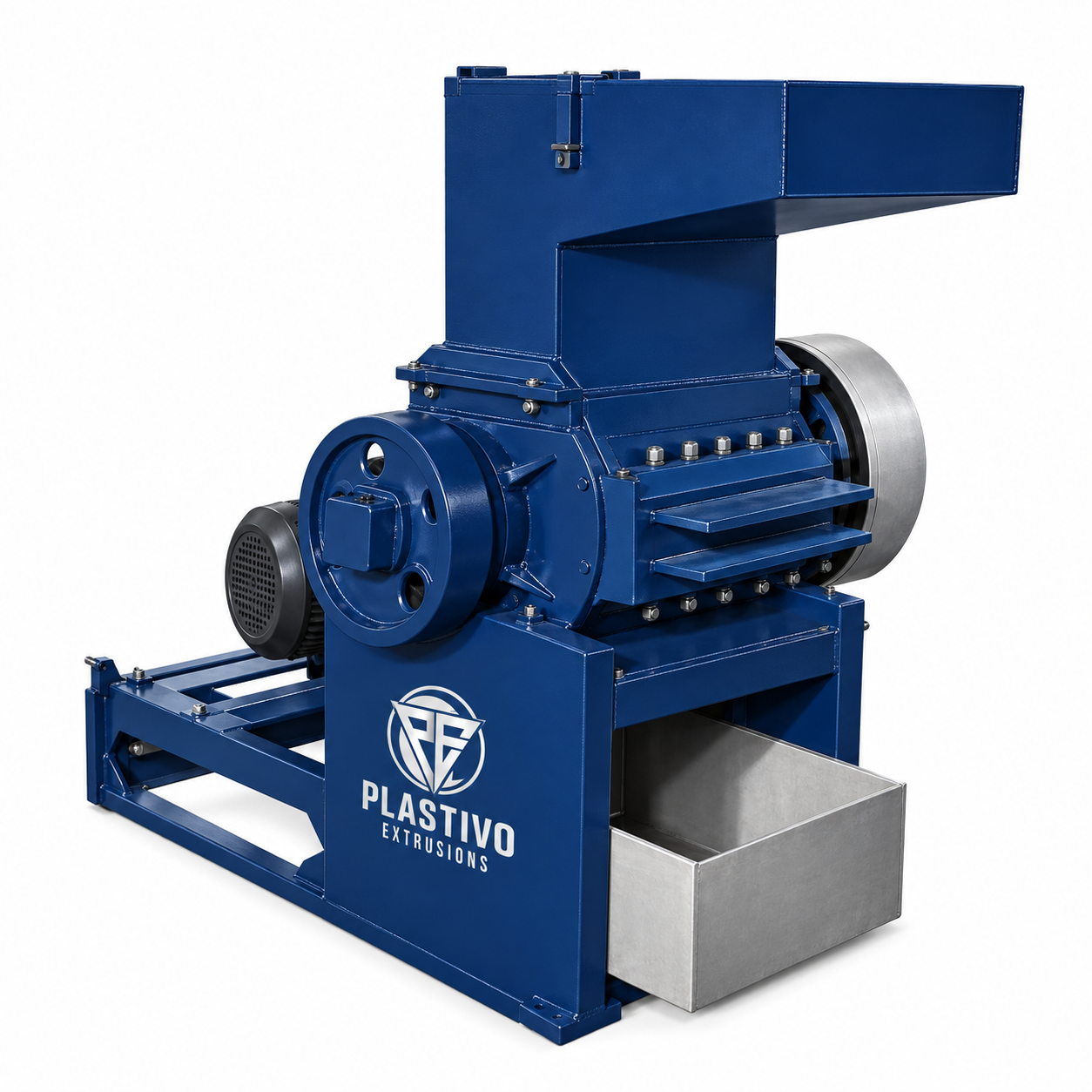

Scrap Grinder Machine for Plastic Recycling
The PE series scrap grinder reduces plastic scrap, runners and rejects into smaller pieces for reprocessing. Six models cover outputs from 100 to 450 kg/hr.
Specifications
| Model | Blade size (inch) | Rotary/fixed blades | Motor | Hopper (inch) | Output kg/hr |
|---|---|---|---|---|---|
| PE-18 | 18 | 6/2 | 20 HP | 50x42x66 | 100-140 |
| PE-20 | 20 | 6/2 | 25 HP | 50x45x65 | 140-180 |
| PE-22 | 22 | 6/2 | 30 HP | 52x60x67 | 180-220 |
| PE-24 | 24 | 6/4 | 40 HP | 60x59x72 | 250-300 |
| PE-30 | 30 | 6/4 | 40 HP | 60x59x72 | 350-400 |
| PE-32 | 32 | 6/4 | 50 HP | 60x59x75 | 400-450 |
6/2 means 6 rotary and 2 fixed blades.
Send us your material and target output and we’ll recommend a model.
Turn scrap into reusable material
The PE series grinds runners, rejects and scrap from extrusion and moulding lines into smaller pieces. The ground material can go back into reprocessing, or on to washing and drying if it is contaminated.
Choosing a PE model
- Match the output range in the table to your hourly scrap volume, and pick the model whose range sits above it, so the machine is not running at its limit.
- PE-18, PE-20 and PE-22 have 6 rotary and 2 fixed blades. PE-24, PE-30 and PE-32 have 6 rotary and 4 fixed blades.
- The hopper size is listed for each model. Check it against the size of the pieces you feed.
- Motor power runs from 20 HP (PE-18) to 50 HP (PE-32). Confirm it against your plant’s power supply.
Where this fits in a recycling line
Not every line needs every step. Tell us your material and we will suggest the right combination.
What to send us for a quote
- The material and its condition (clean, printed, wet, mixed)
- Your target output per hour
- Your plant’s power supply (voltage and phase)
- Photos or a short description of your current line
- Your city and country for delivery
Send these on WhatsApp or the quote form and we will recommend a model.
Frequently Asked Questions
Start with your hourly scrap volume and the largest piece you need to feed, then compare them with the output and hopper columns above. If you are between two models, send us your material and we will recommend one.
The first number is rotary blades and the second is fixed blades.
Send us a photo and a short description of your line and we will tell you how it can be connected.
