Electric Conduit Pipe Bending Machine – Precision PVC Bending, Every Time
Pneumatically operated PVC conduit bending machine with dual PID-controlled heating zones for consistent 90° bends and socket formation.
Why Plastivo
Bent PVC conduit is only as good as its weakest bend — ovality, wall thinning, or an off-angle socket fails inspection and costs you the order. Our electric conduit pipe bending machine solves this with independently controlled heating stations, pneumatic cylinder-driven forming, and a fabricated mold seat that holds the pipe true through the entire bend cycle.
- Independently controlled heating stations
- Pneumatic cylinder-driven forming
- Fabricated mold seat holds the pipe true
Key Features
- Dual PID temperature controllers — independent zone control for even heating

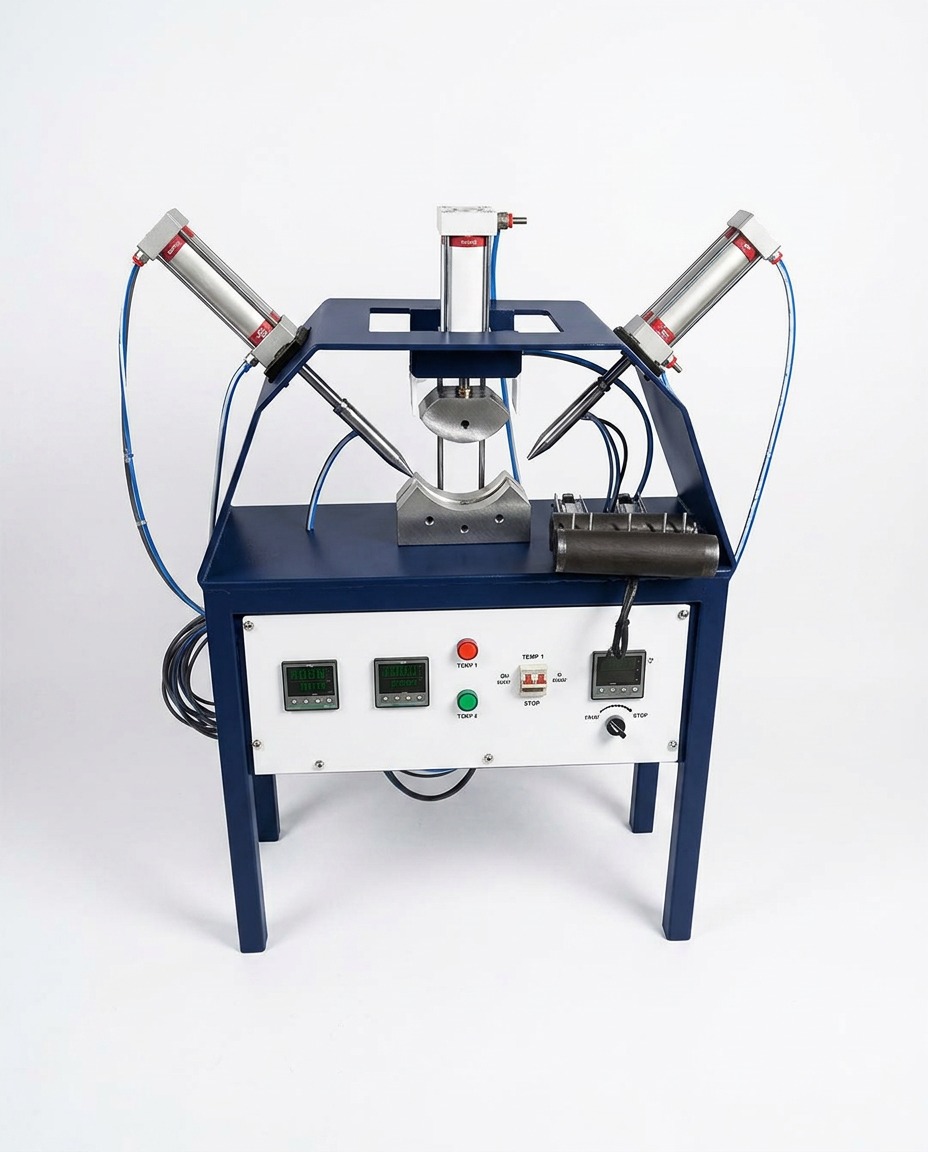

- Pneumatic bend-and-socket cylinders — twin angled cylinders form the bend, center cylinder presses the socket
- Precision mold & forming die — consistent diameter and bend radius, every piece
- Simple control panel — start/stop toggle, zone indicators, digital readouts
- Compact benchtop footprint
- Rugged welded steel frame, powder-coated finish
Applications
- Electrical conduit pipe (PVC) — 90° bends for conduit routing
- PVC pipe bending for plumbing and drainage fittings
- Custom bend angles and socket-forming for OEM fittings production
Technical Specifications
| Specification | Details |
|---|---|
| Pipe diameter range | 19mm – 50mm |
| Bending angle | 90° (custom angles available) |
| Automation | Pneumatic, semi-automatic |
| Heating zones | 2 independent PID-controlled |
| Power consumption | 2 – 2.5 kW |
| Voltage | 220V single phase |
| Air pressure requirement | 5–6 bar (100–120 PSI) |
| Production capacity | 300–1000 bends/hour |
| Machine dimensions | 4 ft × 3 ft × 4 ft (L×W×H) |
| Machine weight | 70–190 kg |
| Warranty | 12 months |
Common Questions from Buyers
Pricing depends on pipe diameter range, automation level, and heating configuration. Get a quote tailored to your production volume — WhatsApp us at +91 98982 41416.
Yes — purpose-built for electrical PVC conduit bending, producing consistent 90° bends with socket formation.
Yes — Plastivo exports to Nigeria, Kenya, South Africa, Ghana, UAE, Saudi Arabia, and Oman.
Manual benders rely on operator force and suit low volume; our pneumatic machine gives repeatable bend quality at production scale with PID-controlled heating.
Get a Quote for Your Conduit Bending Machine
Share your requirement and our team will get back with pricing and lead time.
