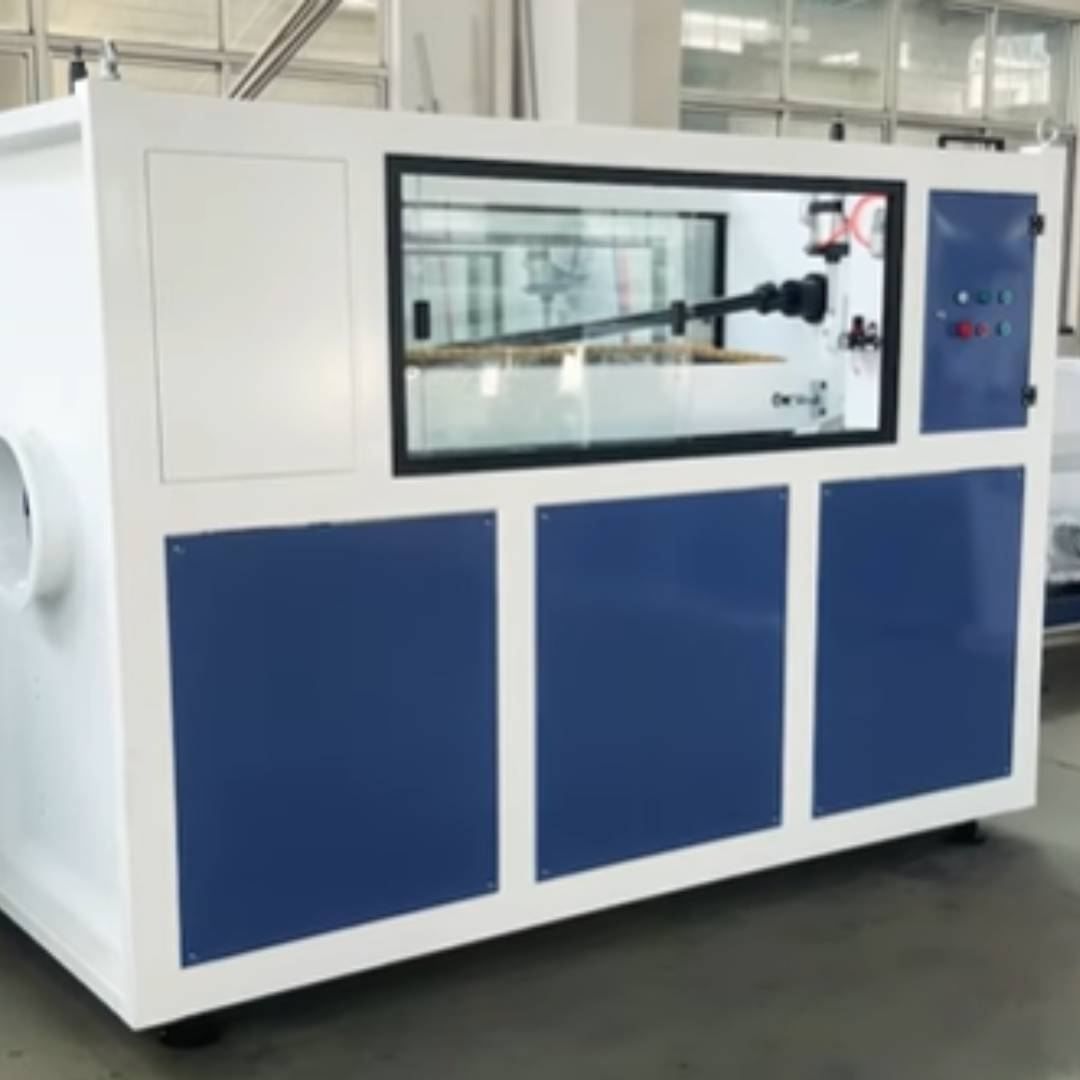

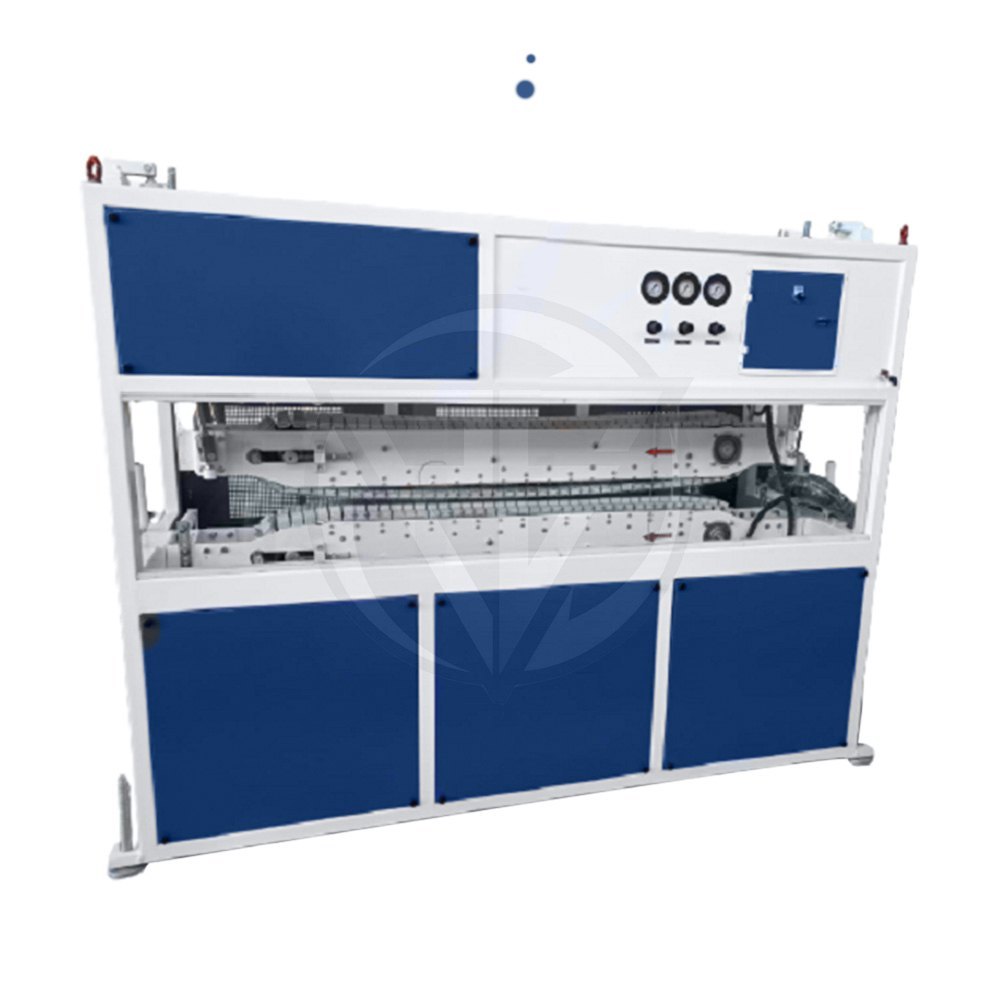

Pipe Haul-Off Machine
High-Precision Hauling System for PVC, HDPE & PP Pipe Extrusion Lines
The Pipe Haul-Off Machine by Plastivo Extrusions is a robust, high-accuracy downstream unit designed to provide continuous, uniform, and stable traction during PVC, HDPE, and PP pipe production. Engineered for durability and smooth performance, this haul-off unit ensures perfect synchronization with the extruder, maintaining consistent pipe dimensions, reducing ovality, and preventing deformation.
Built using a rigid stainless-steel frame, advanced electric controls, and wear-resistant traction blocks, this machine guarantees vibration-free, precise hauling—making it an essential component for any modern pipe extrusion line.
Technical Specifications
Engineered for Precision Pipe Hauling & Line Stability
This haul-off unit is a critical part of the extrusion line, ensuring:
● Consistent traction throughout the cooling and sizing process
● Accurate pipe dimensions without ovality
● Stable pulling force to prevent pipe stretching or deformation
● Smooth synchronization with extruders and cutting machines
Whether producing conduit pipes, pressure pipes, or general-purpose PVC/HDPE pipes, this system ensures top-tier hauling accuracy.
Key Features of the Pipe Haul-Off Machine
✔ High-Accuracy Hauling System
Equipped with:
● 2-track design for uniform traction
● Wear-resistant rubber blocks
● Endless roller chains
● Long contact length for maximum grip
Ensures smooth, slip-free hauling without damaging the pipe surface.
✔ Rigid & Durable Construction
Built with:
● Heavy-duty rectangular steel frame
● Anti-vibration structure
● Stainless-steel support components
Designed for stable 24/7 industrial operation.
✔ Advanced Track Adjustment System
● Lower track controlled electrically
● Upper track controlled via pneumatic cylinders
Enables quick, accurate adjustments for different pipe sizes and thicknesses.
✔ Multi-Belt / Multi-Track Design
Optional configurations:
● 2-track (standard)
● 4-track
● 6-track
● 8-track
Ideal for thicker pipes, larger diameters, and high-speed lines.
✔ Precise Speed Control
Compatible with:
● Servo motor systems (optional)
● Digital/PLC control panels
● Synchronized line speed control
Ensures consistent pulling force and prevents dimensional errors.
✔ Enhanced Pipe Protection
Engineered to minimize:
● Ovality
● Surface marks
● Slippage
Ideal for critical applications like electrical conduits, plumbing pipes, and pressure pipes.
Applications
This haul-off machine is widely used in:
✔ PVC Pipe Extrusion Lines
✔ HDPE / PP Pipe Manufacturing
✔ Conduit & Plumbing Pipe Lines
✔ Agricultural & Irrigation Pipes
✔ Cable Duct Extrusion Lines
✔ Multi-layer and thin-wall pipe production
Why Choose Plastivo Extrusions Pipe Haul-Off Machine?
Benefits at a Glance
✔ Uniform traction for consistent pipe dimensions
✔ High-speed operation capability
✔ Electric + pneumatic track adjustment
✔ Multi-track options for different pipe sizes
✔ Long contact length for stable pulling
✔ Wear-resistant traction blocks
✔ Fully automatic, low maintenance
