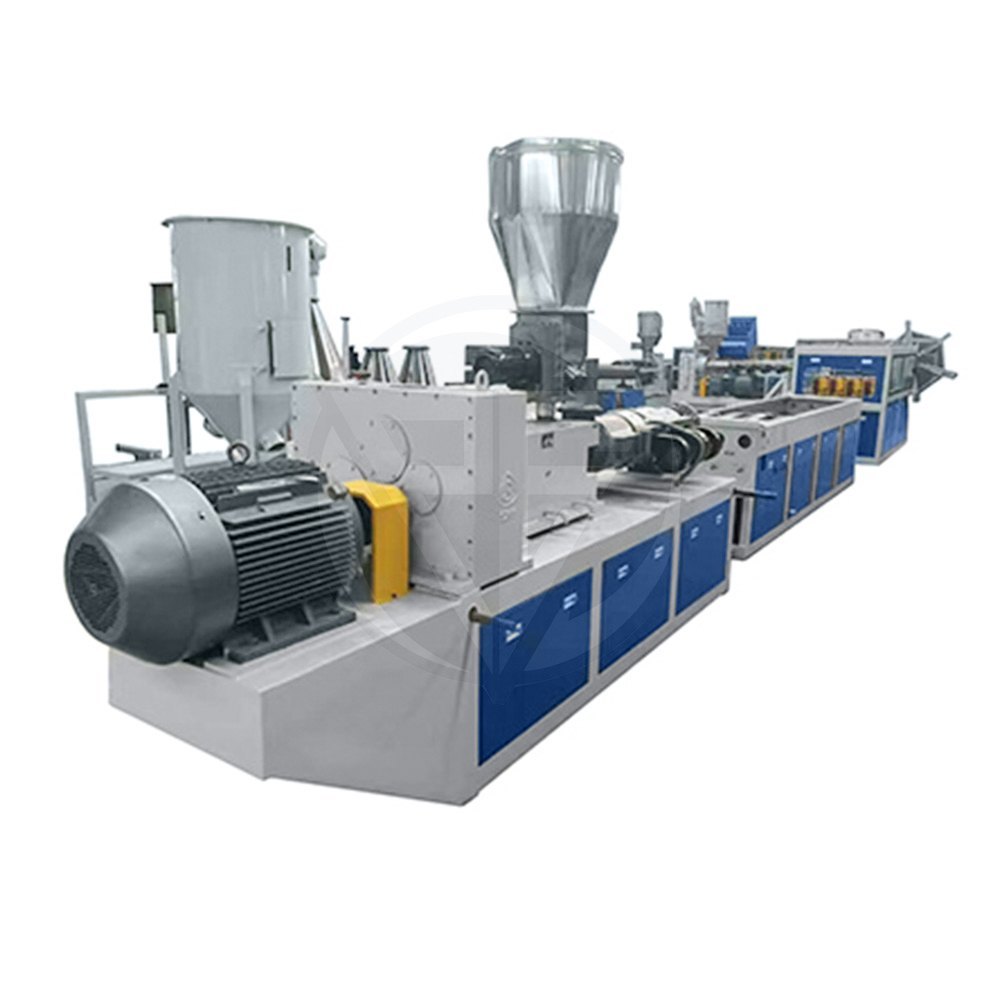

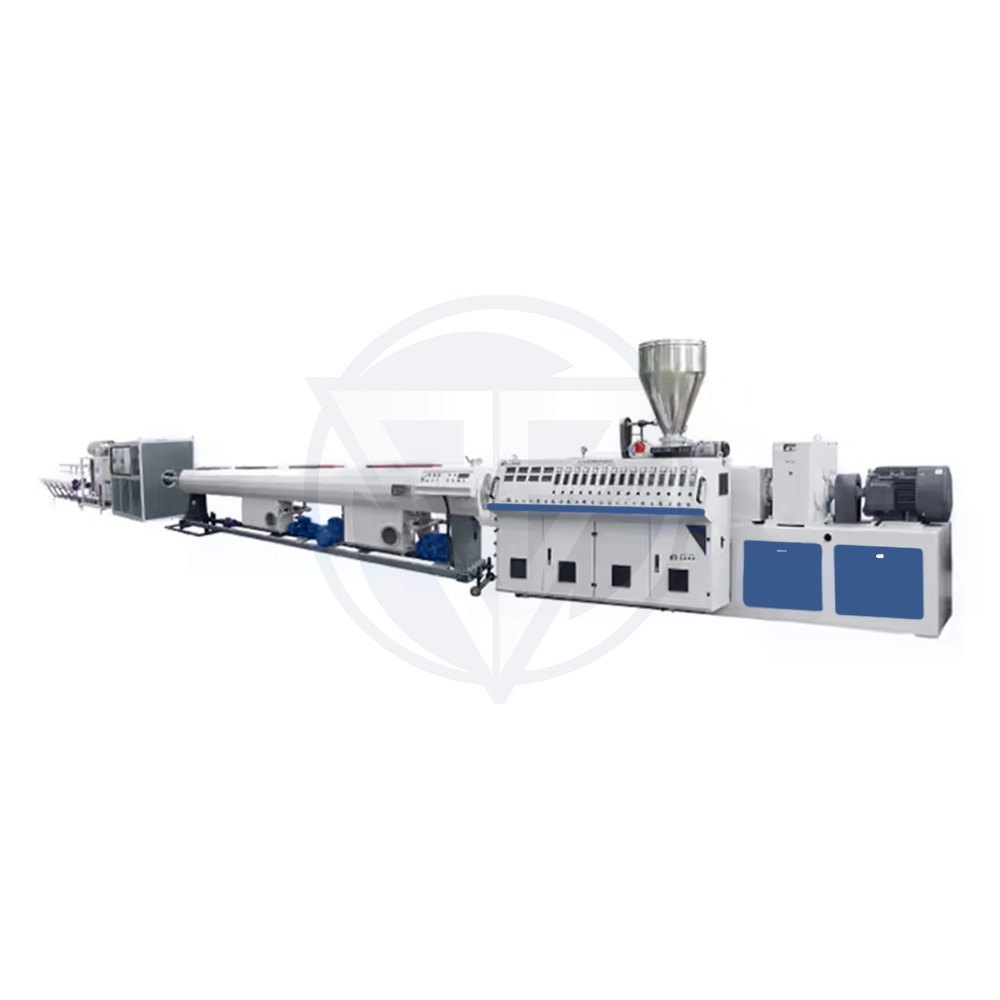

PVC Conduit Pipe Making Machine
High-Performance, Fully Automatic System for Electrical & Plumbing PVC Conduit Pipe Production
The PVC Conduit Pipe Making Machine by Plastivo Extrusions is a state-of-the-art extrusion system engineered for the efficient, precise, and high-volume production of PVC conduit pipes used in electrical wiring, plumbing, cable protection, and commercial construction. Designed with advanced automation, precision temperature control, and durable stainless-steel construction, this machine guarantees consistent quality and long-term reliability.
Built for manufacturers who prioritize output, stability, and product accuracy, this conduit pipe line delivers superior performance—ensuring every pipe meets industry standards for strength, flexibility, and dimensional accuracy.
Technical Specifications
Advanced PVC Conduit Pipe Extrusion Technology
The machine is built using precision engineering to ensure:
● Uniform pipe wall thickness
● Consistent diameter and roundness
● High tensile strength
● Smooth inner and outer surfaces
Equipped with advanced heating, cooling, and control mechanisms, it ensures seamless extrusion from raw material to finished conduit pipes.
Key Features of the PVC Conduit Pipe Making Machine
✔ High-Efficiency Production
With a capacity of 250 kg/hr, this machine ensures continuous, high-speed output suitable for
large-scale manufacturing.
✔ Fully Automatic Operation
Automation includes:
● PLC-based control
● Auto temperature control
● Automatic material feeding
● Automatic pipe cutting
Why Choose Plastivo Extrusions PVC Conduit Pipe Making Machine?
Machine Components Included
✔ Single Screw Extruder
✔ Die Head with Conduit Pipe Tooling
✔ Vacuum Calibration Tank
✔ Cooling Water Spray Tanks
✔ Haul-Off Unit
✔ Cutter (Automatic / Semi-Automatic)
✔ Pipe Stacker or Coiler
✔ PLC Control Panel
Every component is tested for precision and durability before dispatch.
This reduces labor cost and enhances production accuracy.
✔ Precision Temperature Control
The extruder barrel includes 6 heating zones, ensuring:
● Accurate melt flow
● Proper gelatinization
● Stable extrusion temperature
Perfect for maintaining conduit pipe quality standards.
✔ Robust Stainless-Steel Construction
Built with high-quality alloys and SS-grade materials for:
● Long-term durability
● Corrosion resistance
● High performance under 24/7 production cycles
✔ Efficient Cooling System
Features:
● Vacuum calibration tanks
● High-pressure water sprays
● Optimized cooling channels
Ensures uniform pipe formation and perfect roundness.
✔ Customizable Configurations
Available for multiple pipe sizes:
● 16 mm
● 20 mm
● 25 mm
● 32 mm
● 40 mm
● 50 mm
Custom tooling available on request.
Benefits at a Glance
✔ High output: 250 kg/hr
✔ Automatic operation
✔ Energy-efficient (75 KW)
✔ Accurate pipe dimensions
✔ Stainless steel construction
✔ Uniform cooling system
✔ Customizable tooling
✔ Low maintenance
✔ Long operational life
Applications

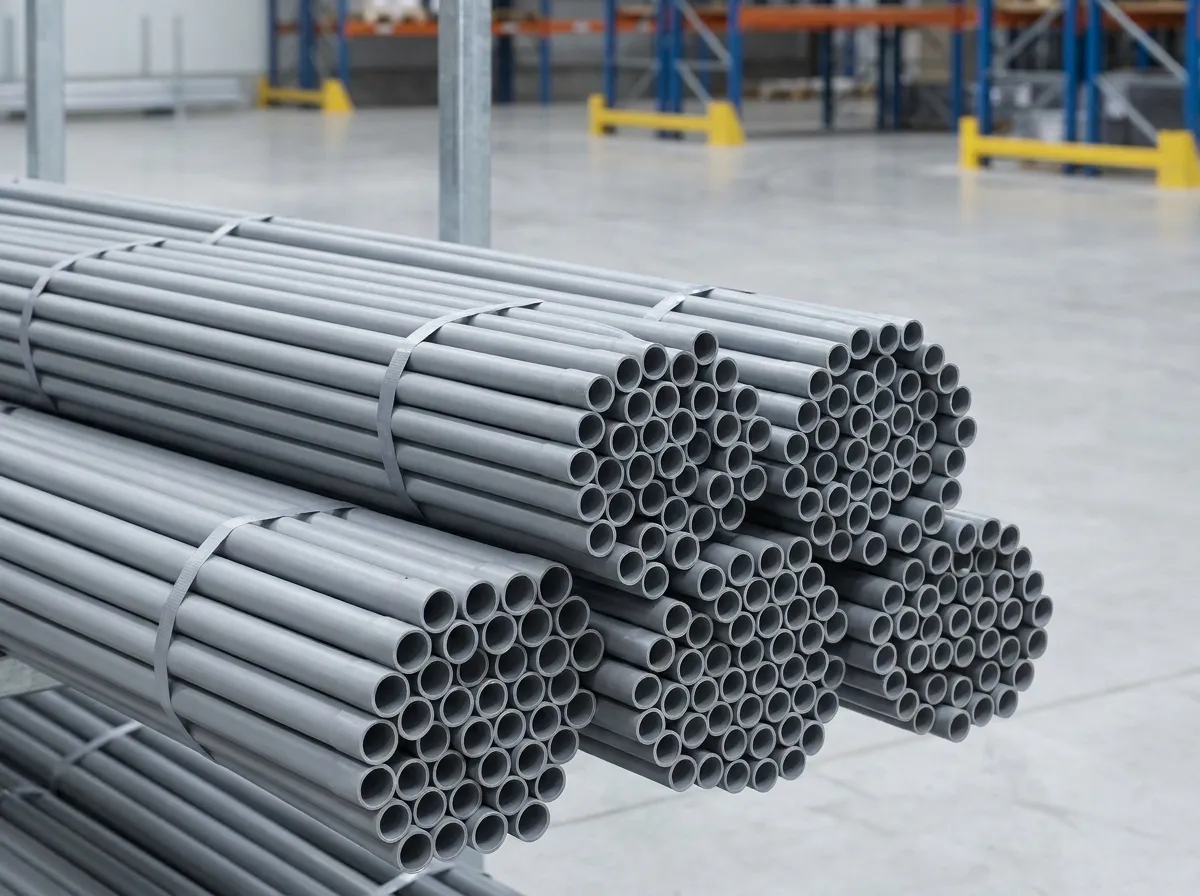

This machine is ideal for manufacturing conduit pipes used in:
✔ Residential electrical installations
✔ Commercial building wiring
✔ Industrial cable protection
✔ Plumbing channels
✔ Underground wiring ducts
✔ IT network cable routing
