PVC Pipe Extrusion Machine Manufacturer in India
Plastivo Extrusions designs and manufactures PVC, uPVC, and CPVC pipe extrusion machines from our facility in Vatva, Ahmedabad, Gujarat. Our extruder range covers output capacities from 100 kg/hr to 700 kg/hr, serving plastic pipe manufacturers across India as well as export customers in Africa and the Middle East.

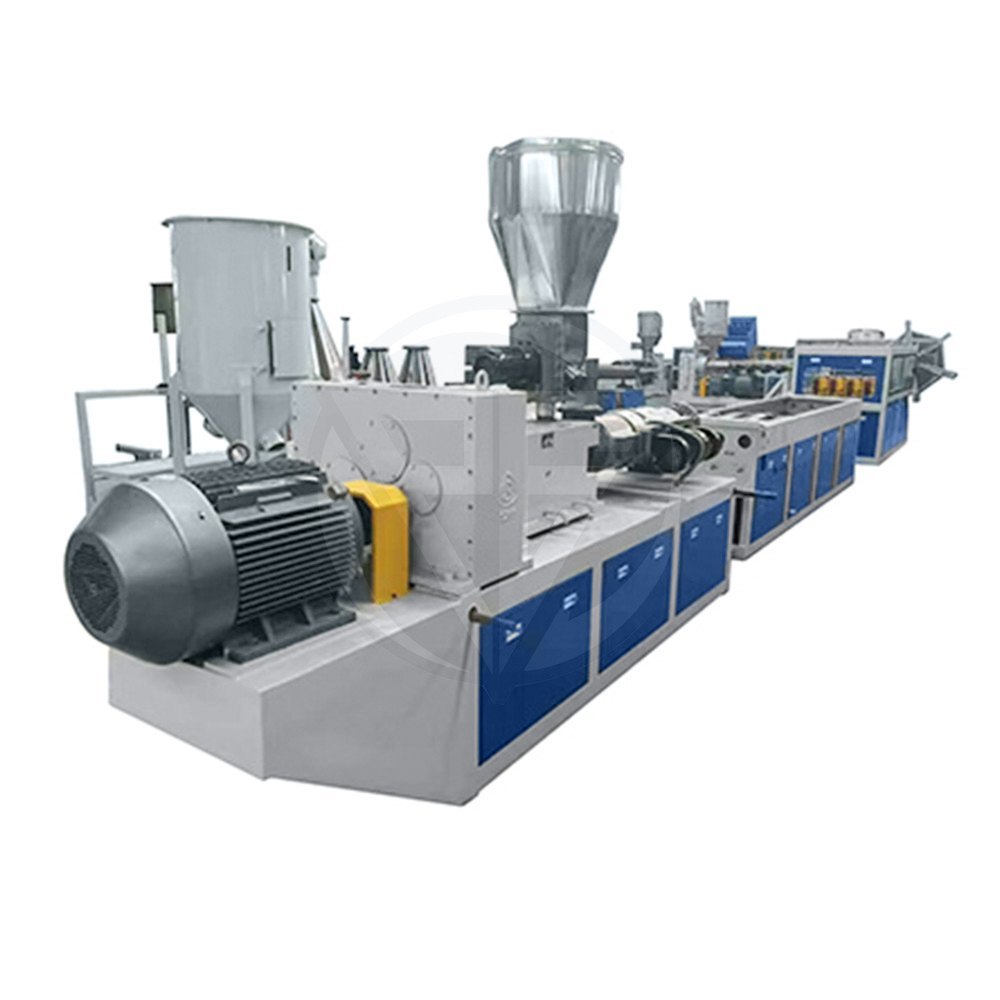

Each machine is built around a precision-engineered screw and barrel assembly, sized to match its output tier, and is designed to deliver consistent wall thickness with minimal rejection across long, continuous production runs. Every extruder in our range is PLC-controlled, giving operators straightforward setup, repeatable process parameters, and stable output batch after batch — whether you’re running a single shift or round-the-clock production.
PVC Pipe Extrusion Machine – Technical Specifications
| Extruder Model | L/D Ratio | Main Drive (KW - AC) | Output (kg/hr) |
|---|---|---|---|
| PE-120 | 18:1 | 11 | 100–120 |
| PE-140 | 22:1 | 15 | 130–150 |
| PE-170 | 25:1 | 18 | 150–170 |
| PE-200 | 18:1 | 22 | 180–200 |
| PE-250 | 22:1 | 30/22 | 200–250 |
| PE-350 | 28:1 | 37/30 | 300–350 |
| PE-450 | 22:1 | 45 | 400–450 |
| PE-550 | 25:1 | 55 | 500–550 |
| PE-700 | 28:1 | 75 | 650–700 |
Note: Custom output ranges and configurations are available on request — contact our team to discuss your specific production requirements.
Why Manufacturers Choose Plastivo Extruders
- Direct from manufacturer, not a trading company. Every machine is built at our own Ahmedabad facility, which means faster customization, direct technical support, and pricing without a middleman’s markup.
- In-house screw barrel manufacturing. Plastivo is a specialist screw barrel manufacturer in its own right, producing nitrided and bimetallic barrels for plastic processing machinery. That expertise carries directly into the extruders we build — the screw and barrel are the heart of any extrusion line, and ours are engineered and produced under the same roof, not outsourced.
- Built for PVC, uPVC, and CPVC. Our extruders are configured for the specific processing characteristics of rigid and semi-rigid PVC compounds, including appropriate L/D ratios and drive torque for each output class.
- Full technical support. From installation guidance to spare parts and troubleshooting, our team supports you through commissioning and beyond.
- Pan-India delivery, export-ready. We regularly ship machines across India and to export markets including Nigeria, Kenya, South Africa, Ghana, UAE, and Saudi Arabia.
Applications
PVC pipe extrusion machines from Plastivo are used to manufacture:
- Rigid PVC pipes for water supply and drainage
- uPVC pipes for plumbing and agricultural applications
- CPVC pipes for hot water and industrial fluid transport
- PVC electrical conduit pipes
- Casing and column pipes for borewell applications
Key Features
- Twin-shaft high-torque gearbox, V-belt driven, for smooth and reliable power transmission
- Solid tubular steel frame construction built for long-term structural stability under continuous operation
- AC Vector Drive with integrated heating and cooling control for precise process management
- High-accuracy PID digital temperature controllers across all heating zones
- Low energy consumption relative to output, reducing per-kg production cost
- Low-maintenance design to minimize unplanned downtime
- Uniform, repeatable output performance batch after batch
- Precision die design for accurate, consistent pipe dimensions
- High-grade nitrided screw barrel, manufactured in-house by Plastivo — explore our screw barrel range →
How the Extrusion Process Works
PVC compound is fed into the hopper and conveyed through the heated barrel by the rotating screw, where it’s progressively melted and homogenized under controlled temperature and pressure. The molten material is then forced through a precision die that shapes it into pipe form, before passing through a vacuum sizing tank for calibration and cooling, a haul-off unit for controlled traction, and finally a cutting unit to length. Each stage is coordinated through the PLC control system to maintain consistent wall thickness and dimensional accuracy throughout the run.
Complete Your Pipe Manufacturing Line
An extruder is only one part of a complete pipe production line. Plastivo also supplies the full range of auxiliary equipment needed to run a finished line end-to-end — die heads, vacuum sizing tanks, haul-off (traction) units, and cutting machines.
Export & After-Sales Support
Plastivo ships PVC pipe extrusion machines to customers across India and internationally, with technical documentation, installation guidance, and after-sales spare parts support. Our team can advise on machine selection based on your target pipe diameter range, output requirements, and available power supply.
Want to Buy a PVC Pipe Extrusion Machine?
Get a Quote in 24 Hours.

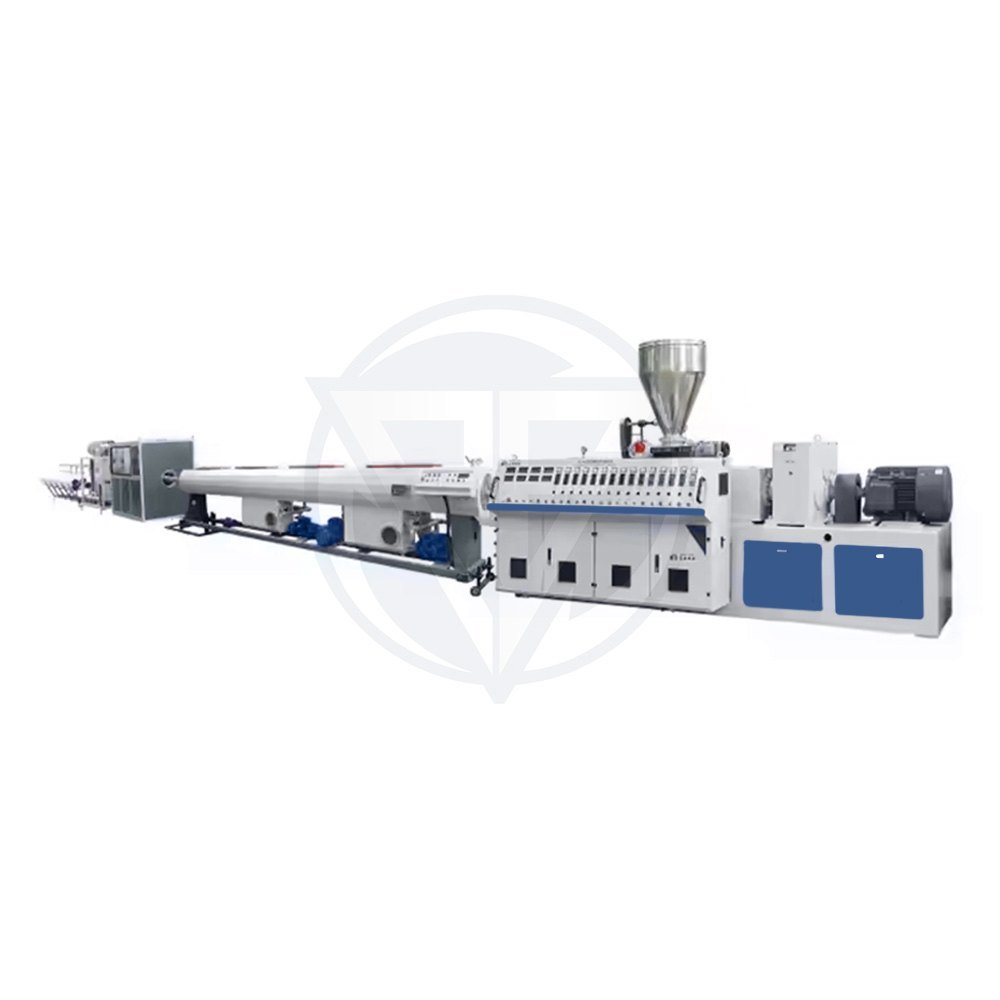

Main Components Included in the PVC Pipe Line
A complete PVC pipe extrusion line includes:
- Precision-engineered screw and barrel assembly (high-grade nitrided, manufactured in-house)
- Die head for accurate, consistent pipe shaping
- Vacuum sizing tank for calibration and cooling
- Haul-off (traction) unit for controlled pulling
- Cutting unit for length control
- PLC control panel for repeatable process parameters
Practical Features
High-Torque Drive System
Twin-shaft high-torque gearbox, V-belt driven, for smooth and reliable power transmission across all output tiers.
Built for Continuous Operation
Solid tubular steel frame construction and a low-maintenance design keep unplanned downtime to a minimum during long production runs.
Precise Process Control
AC Vector Drive with integrated heating and cooling control, plus high-accuracy PID digital temperature controllers across all heating zones.
Consistent, Repeatable Output
Precision die design and PLC-based control deliver uniform, repeatable output performance batch after batch, with low energy consumption relative to output.

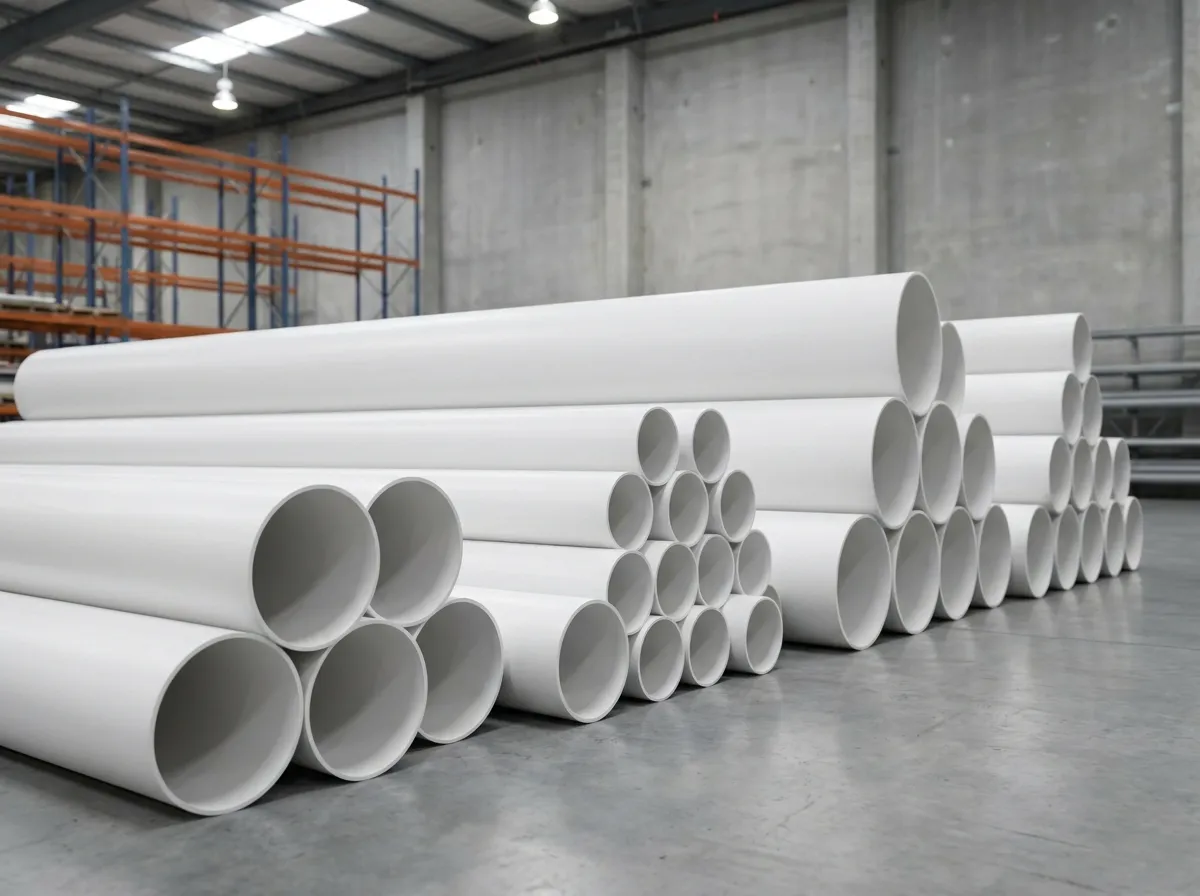

Applications of PVC Pipes
PVC, uPVC, and CPVC pipes produced on Plastivo extruders are widely used for:
- Rigid PVC water supply and drainage systems
- uPVC plumbing and agricultural piping
- CPVC hot water and industrial fluid transport lines
- PVC electrical conduit pipes
- Casing and column pipes for borewell applications
Why Indian Manufacturers Choose Plastivo Extrusions?
Plastivo Extrusions builds PVC, uPVC, and CPVC extrusion machines directly at our own Ahmedabad facility — not as a trading company reselling someone else’s equipment. Because we also manufacture our own nitrided and bimetallic screw barrels in-house, that expertise carries straight into every extruder we build.
Manufacturers choose Plastivo for:
- Direct factory support and pricing without a middleman’s markup
- Machines configured specifically for PVC, uPVC, and CPVC processing
- Full technical support from installation through commissioning and beyond
- Pan-India delivery and export-ready shipping to Africa and the Middle East
Get in Touch for Details and Pricing
If you are planning to set up or upgrade your PVC pipe manufacturing line, Plastivo Extrusions offers complete guidance, from machine selection to installation and operator training. A reliable PVC Pipe Extrusion Machine can significantly improve productivity and product quality when chosen correctly.
Get in touch with us today to discuss your pipe manufacturing requirements, machine specifications, and customised solutions that fit your production goals.
